HAAS umc series 5axis postprocessor

Introduction to the UMC-Series by Haas

The UMC-Series from Haas is a versatile 5-axis CNC machine series, designed to handle complex part machining with high precision. This series is ideal for aerospace, mold manufacturing, precision engineering, and mass production. With a rigid structure and user-friendly controls, UMC-Series delivers optimal machining performance and reliability.

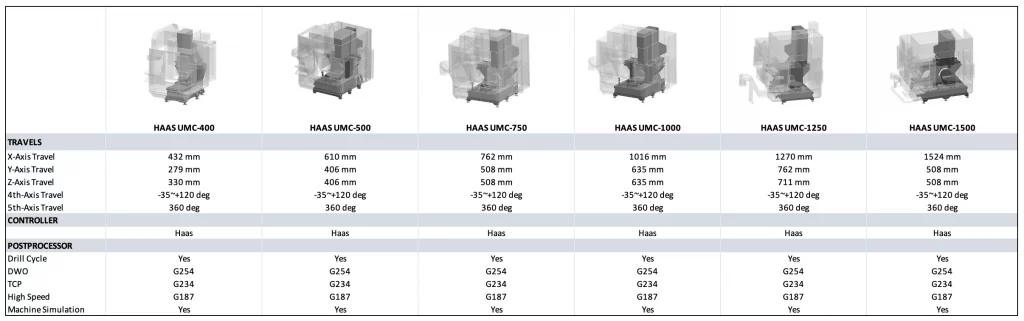

Key Models in the UMC-Series:

•UMC-400 – Compact size, ideal for limited workspace.

•UMC-500 – Extended travel range, suitable for various machining applications.

•UMC-750 – The most popular model, balancing size and performance.

•UMC-1000 – Larger travel range for bigger components.

•UMC-1250 – High-precision machining for large-scale parts.

•UMC-1500 – The most powerful model, optimized for industrial-scale manufacturing.

Why Do You Need a Custom Post Processor for UMC-Series?

The UMC-Series utilizes Haas Control, requiring a customized post processor to fully optimize its 5-axis machining capabilities. A well-optimized post processor will:

•Optimize toolpaths, reducing programming and machining time.

•Ensure accurate G-code generation, preventing syntax errors and coordinate mismatches.

• Fully support advanced functionalities, including DWO (G254), TCP (G234), and high-speed machining (G187).

Standard post processors often lack comprehensive support for these features, requiring manual NC code modifications, increasing error risks, and reducing production efficiency.

Get a Customized Post Processor Solution from OptiTech

OptiTech provides highly optimized post processors for NX CAM, Mastercam, and SolidCAM, ensuring seamless operation of UMC-Series machines with advanced functionalities:

• Comprehensive support for drilling cycles.

• Full integration of G254 for Dynamic Work Offset (DWO).

• Tool Center Point (TCP) support with G234.

• High-speed machining with G187.

• Accurate machine simulation in NX CAM ISV or Vericut for collision detection.

Thanks to these optimizations, OptiTech’s post processors help businesses enhance productivity, minimize errors, and streamline 5-axis CNC machining processes.



Get a Free Trial of the UMC-Series Post Processor!

If you are using a UMC-Series machine and need a post processor for NX CAM, Mastercam, or SolidCAM, sign up now for a free trial at OptiTech Post Library.
